HPMC User Guide v 1.00
© 2022 Bassem W. Jamaleddine
1-1
The HPMC may include one or more of the following:

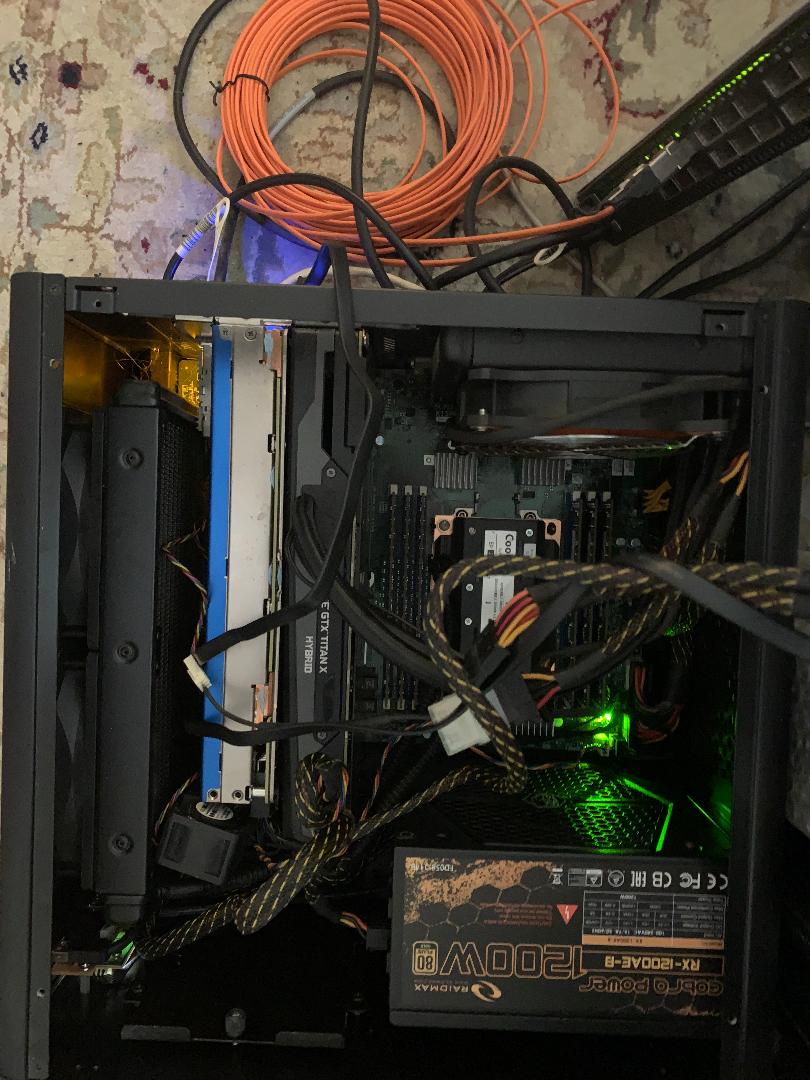

Figure 1.1.1 shows the HPMC that includes all the three devices mentioned above. It is the smallest most powerful desktop computer; dimensions 14 x 14 x 8 inches.

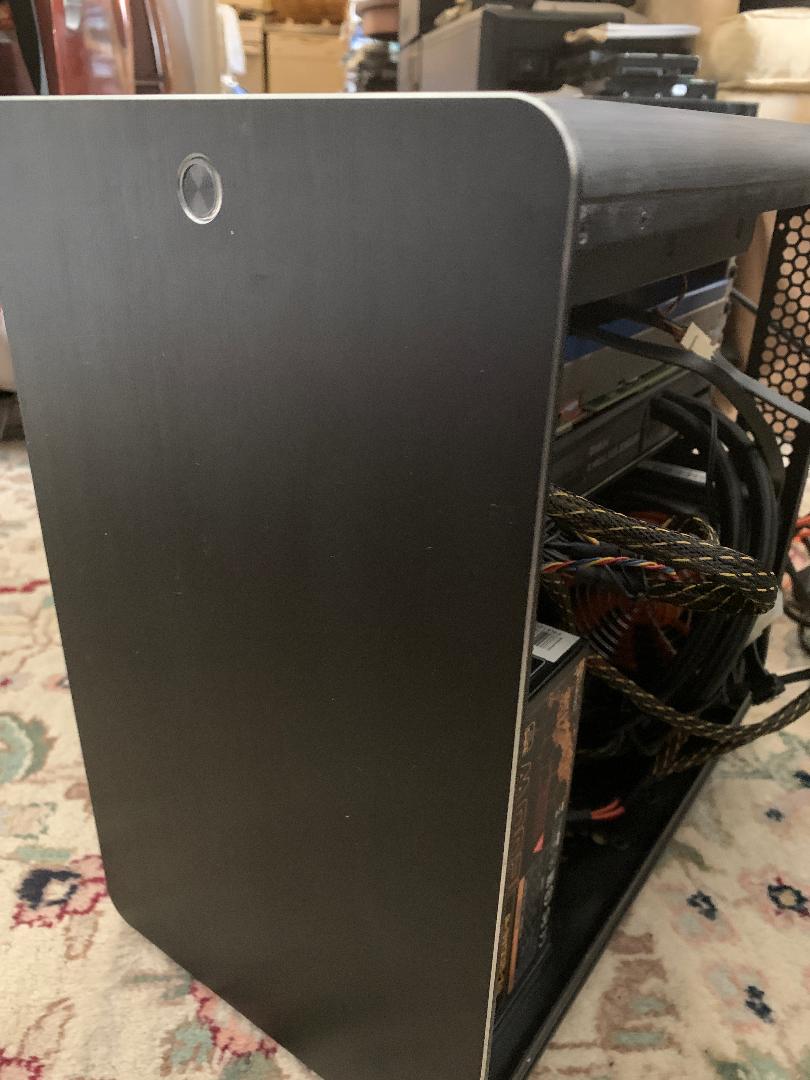

Figure 1.1.2 shows the side view of the HPMC-KLIB.

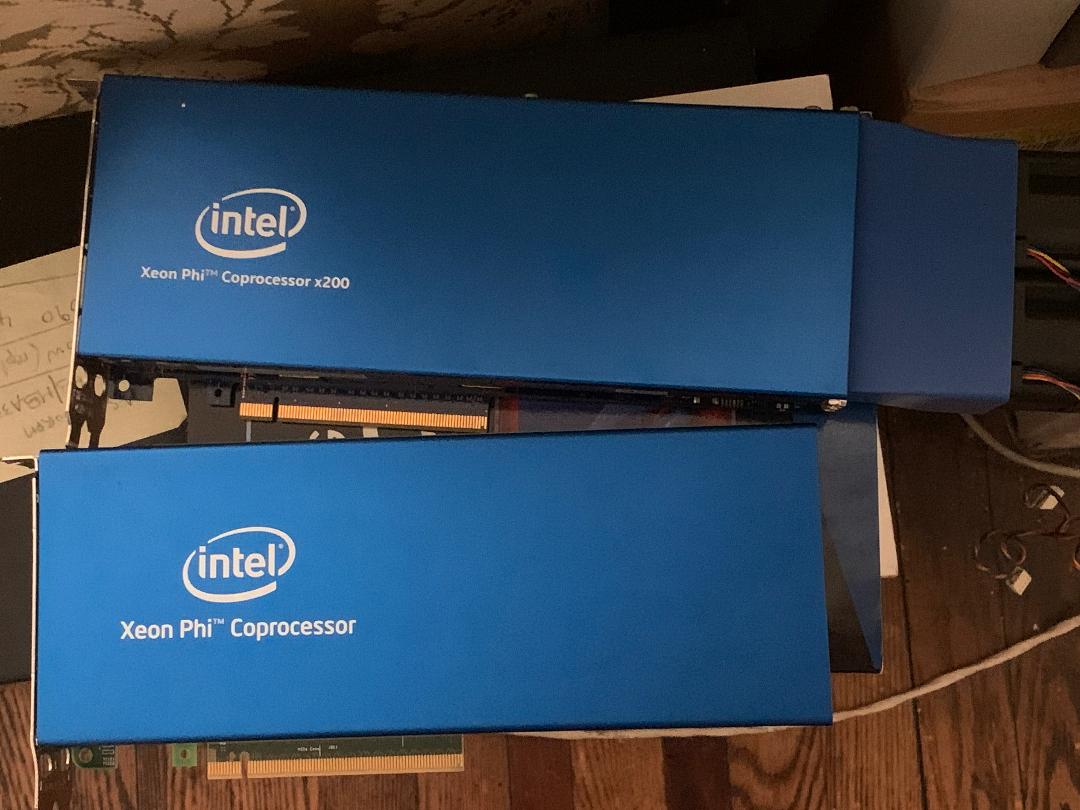

Figure 1.1.3 shows the Xeon Phi MIC.

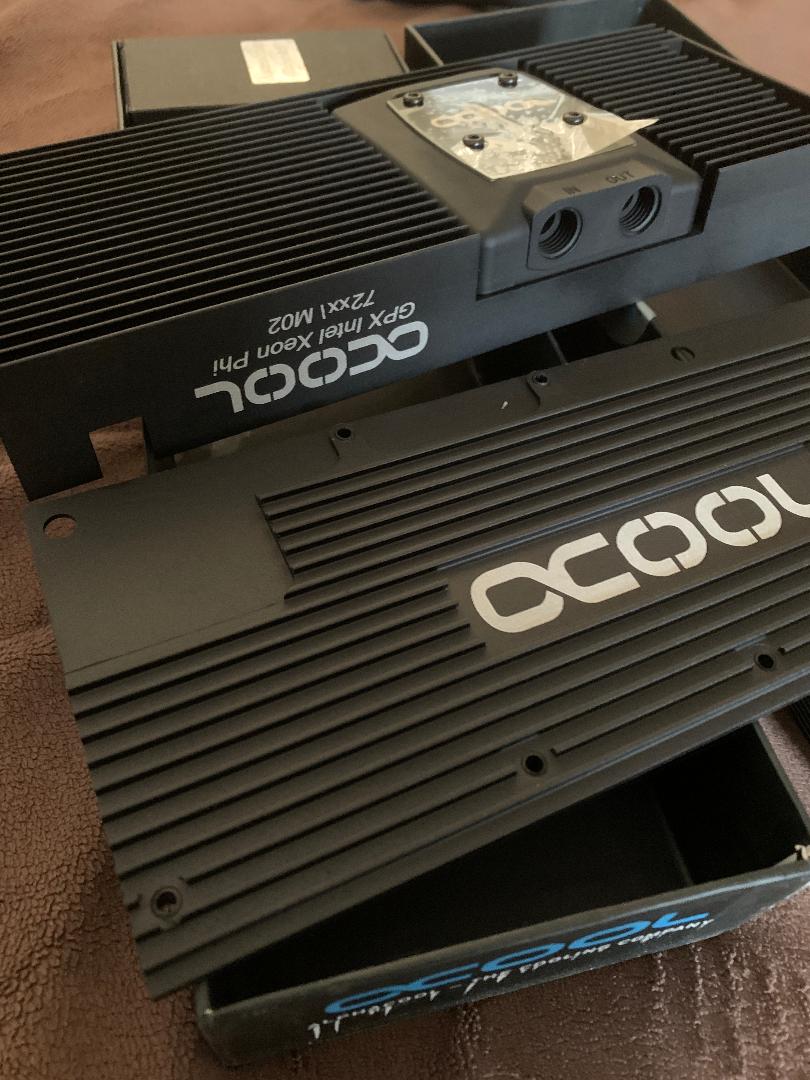

Figure 1.1.4 shows the liquid cooling for the the Xeon Phi MIC.

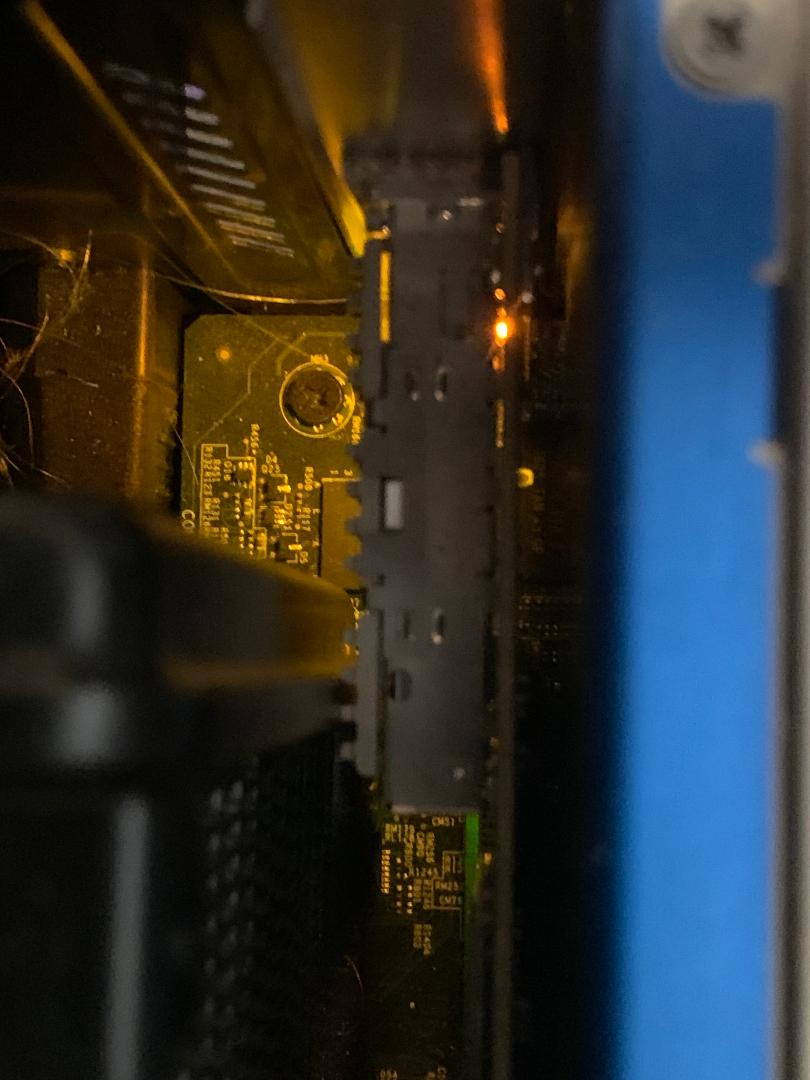

Figure 1.1.5 shows the QLogic QLE7340 Infiniband QDR slotted in PCIe.

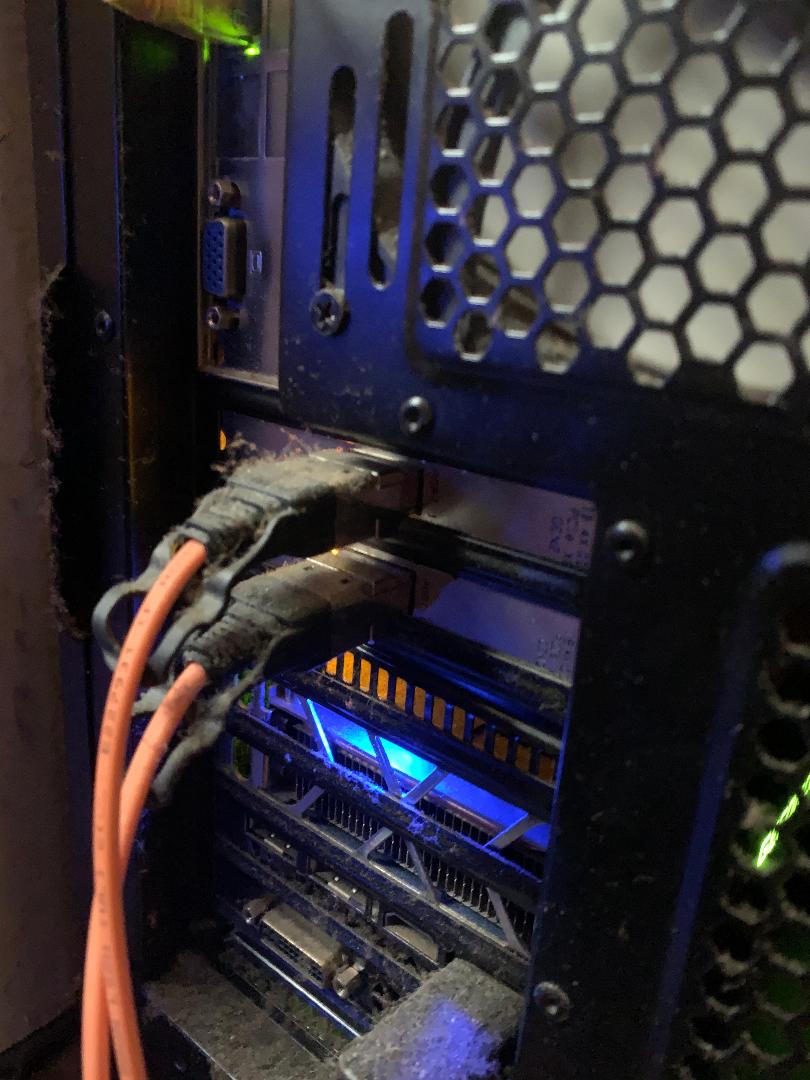

Figure 1.1.6 shows the Fiber optic connected to QLogic InfiniPath QLE7140 IB6110401-01 InfiniBand SDR 4x 10Gb PCI-e x8.

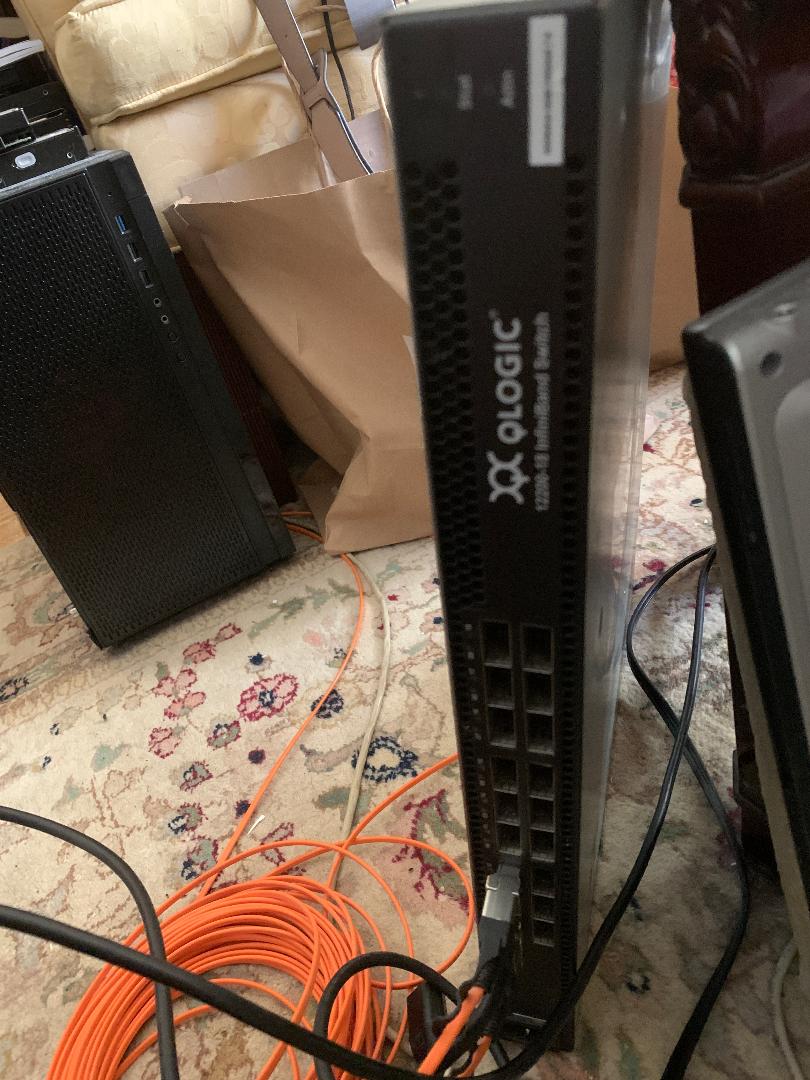

Figure 1.1.7 shows the Network Switch Qlogic 12200-18 18-Port QDR InfiniBand Network Switch 12200-18-28.

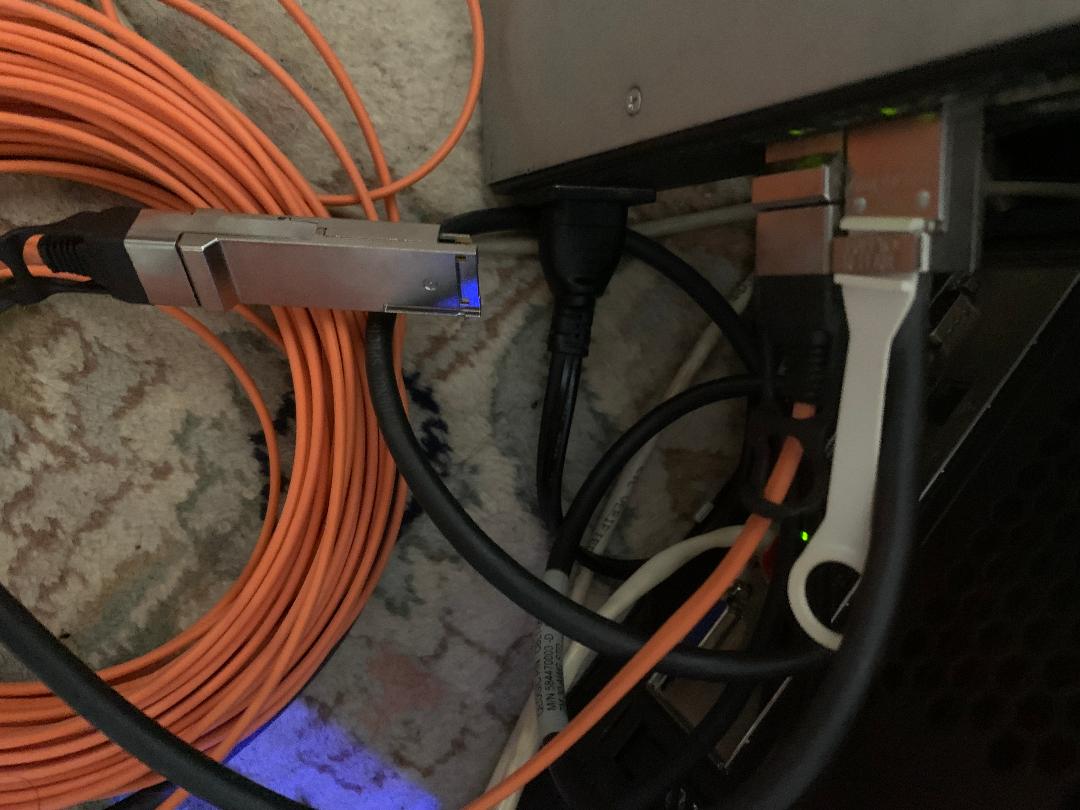

Figure 1.1.8 shows the connectors to the Network Switch.

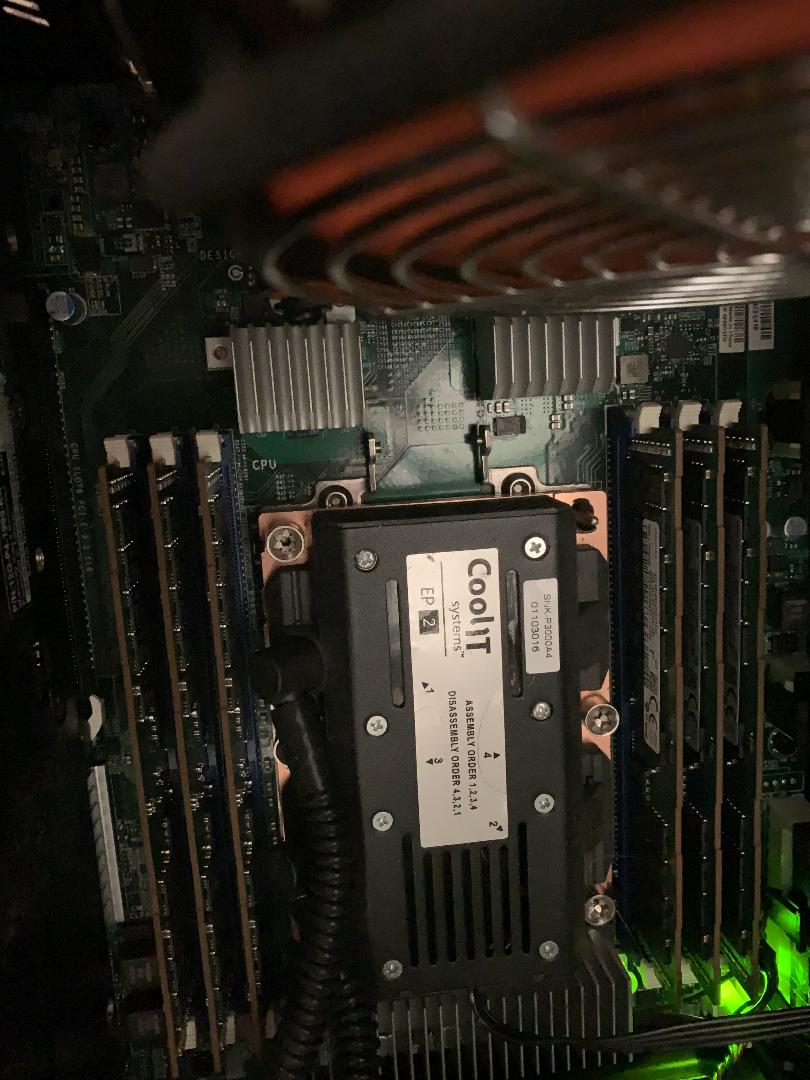

Figure 1.1.9 shows the Xeon Phi Knight Landing 7250 on the main board.
Figure 1.1.10 shows an early HPMC built in 2011.

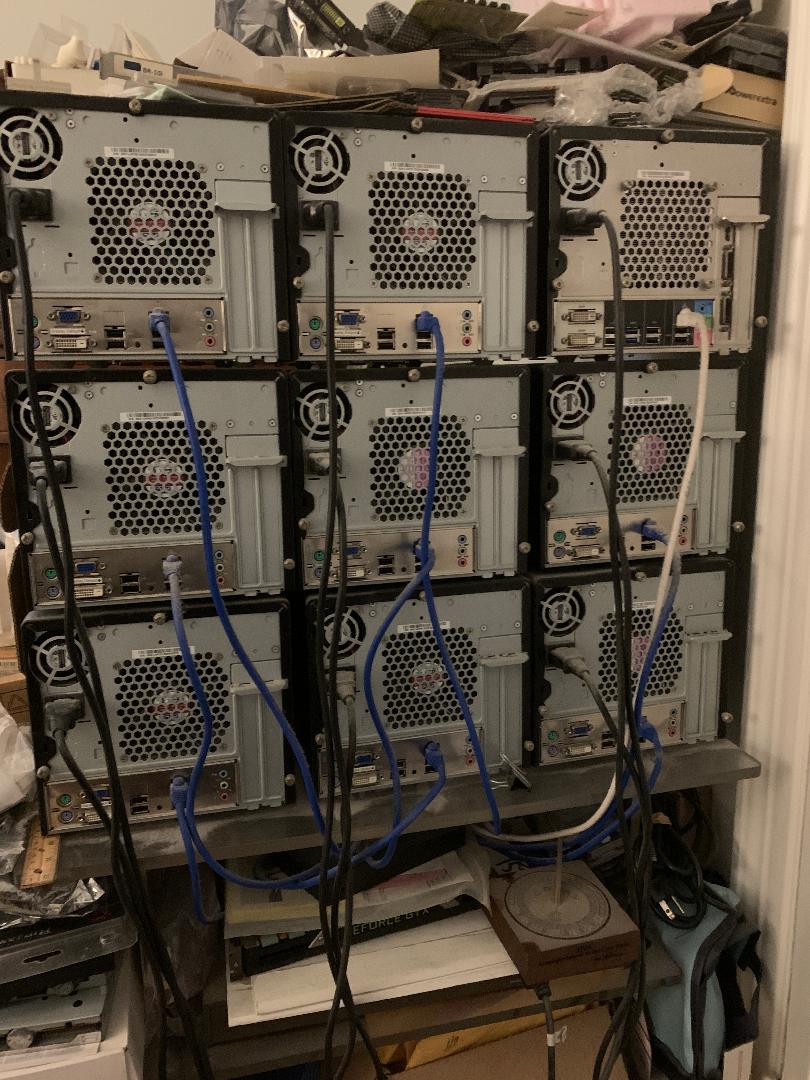

Figure 1.1.10 shows the MATX, an earlier HPMC with interconnected nodes that I built in 2011.
It is administered through a terminal and runs a custom based REXX like interpreter that has binding to Intel 11 ifort.
