ASPL User Guide v 1.00
© 2025 Bassem W. Jamaleddine
11. 1ASPL Shallow Set Operations
The following are the shallow set operators
f*& f*U f*\ f*D d*& d*U d*\ g*& g*U g*\
Shallow element intersection
f*& a1 a2 [a3 .. aN] where a1 a2 [a3 .. aN] are set variables
Shallow element union
f*U a1 a2
Shallow element difference
f*\ a1 a2
Shallow element set symmetric
f*D a1 a2
Shallow subgroup intersection
d*& a1 a2
Shallow subgroup union
d*U a1 a2
Shallow subgroup difference
d*\ a1 a2
Shallow group intersection
g*& a1 a2
Shallow group union
g*U a1 a2
Shallow group difference
g*\ a1 a2
ASPL Shallow Set Operations
Shallow matching is a match between two strings performed through some intermediate function that takes as input both strings, then returns true or false. ASPL provides shallow matching through an internal module, and offer the user to edit and make changes to the functions of the module. The shallow module functions are selectable, the ASPL command shallowed displays the current shallow function being used by ASPL, and the command ~shallowed edits the shallowed module.
ASPL provides ten operators to do shallow set operations: f*&, f*U,f*\, f*D, d*&, d*U,d*\, g*&, g*U, and g*\.
■ The shallowed Command

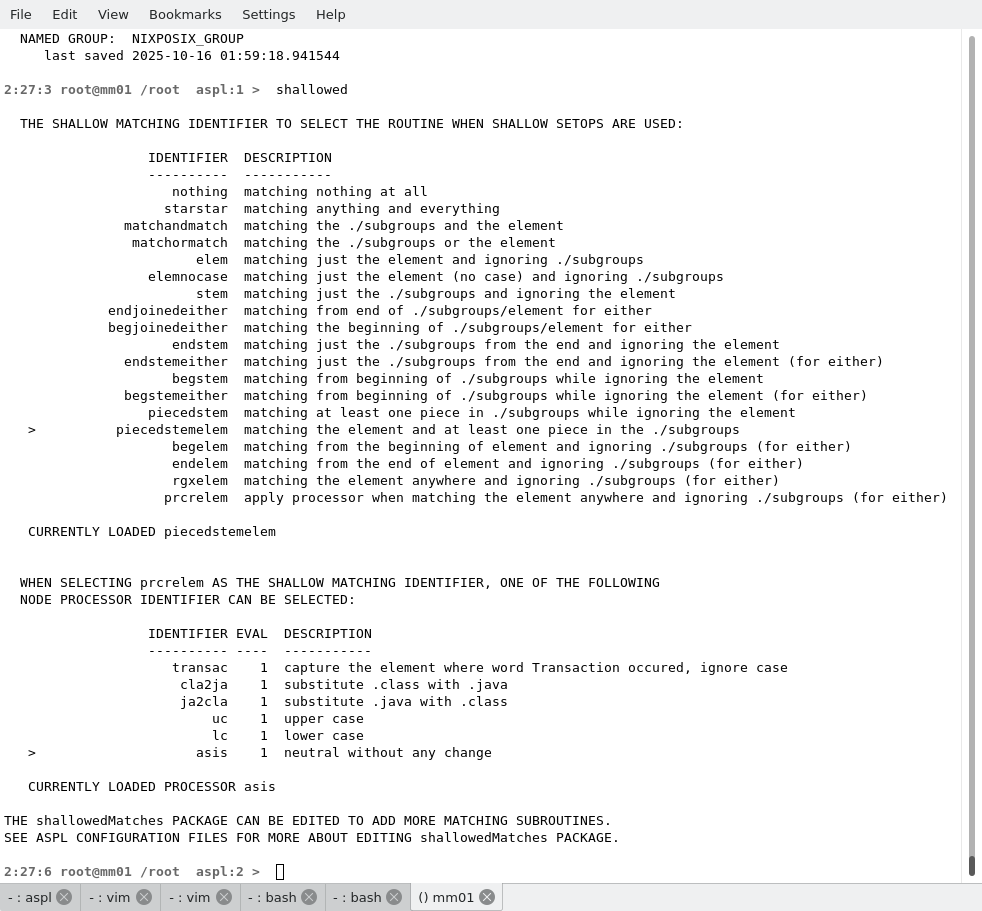

At the ASPL prompt when you type the command shallowed the following is displayed on your terminal:
THE SHALLOW MATCHING IDENTIFIER TO SELECT THE ROUTINE WHEN SHALLOW SETOPS ARE USED: IDENTIFIER DESCRIPTION ---------- ----------- nothing matching nothing at all starstar matching anything and everything matchandmatch matching the ./subgroups and the element matchormatch matching the ./subgroups or the element elem matching just the element and ignoring ./subgroups elemnocase matching just the element (no case) and ignoring ./subgroups stem matching just the ./subgroups and ignoring the element endjoinedeither matching from end of ./subgroups/element for either begjoinedeither matching the beginning of ./subgroups/element for either endstem matching just the ./subgroups from the end and ignoring the element endstemeither matching just the ./subgroups from the end and ignoring the element (for either) begstem matching from beginning of ./subgroups while ignoring the element begstemeither matching from beginning of ./subgroups while ignoring the element (for either) piecedstem matching at least one piece in ./subgroups while ignoring the element > piecedstemelem matching the element and at least one piece in the ./subgroups begelem matching from the beginning of element and ignoring ./subgroups (for either) endelem matching from the end of element and ignoring ./subgroups (for either) rgxelem matching the element anywhere and ignoring ./subgroups (for either) prcrelem apply processor when matching the element anywhere and ignoring ./subgroups (for either) CURRENTLY LOADED piecedstemelem WHEN SELECTING prcrelem AS THE SHALLOW MATCHING IDENTIFIER, ONE OF THE FOLLOWING NODE PROCESSOR IDENTIFIER CAN BE SELECTED: IDENTIFIER EVAL DESCRIPTION ---------- ---- ----------- transac 1 capture the element where word Transaction occured, ignore case cla2ja 1 substitute .class with .java ja2cla 1 substitute .java with .class uc 1 upper case lc 1 lower case > asis 1 neutral without any change CURRENTLY LOADED PROCESSOR asis THE shallowedMatches PACKAGE CAN BE EDITED TO ADD MORE MATCHING SUBROUTINES. SEE ASPL CONFIGURATION FILES FOR MORE ABOUT EDITING shallowedMatches PACKAGE.
If you select the prcrelem as the processor, then you can also select one of the node processors:
aspl> shallowed prcrelem
aspl> setprcr cla2ja
aspl> shallowed
It is possible to specify your own processor inline; first setshallowed to prcrelem, then type prcr followed by your inline node processor.
Here is an example showing how to replace elements where .class appears with .java:
aspl> shallowed prcrelem
aspl> prcr sub { my $s = shift; $s =~ s/\.class/\.java/; return $s; }
Shallow Set Operation on JMX Jar Archives - Element RegexThe following example shows shallow set operations performed on the sample JMXJAR workspace.
In this example we will get the shallow intersection on the elements (that is the file names) matching anywhere from the end.
Shallow Set Operation on Java Jar Archive - Elements with TransactionThe following example shows shallow set operations performed on the sample JMXJAR workspace.
In this example we will get the shallow intersection on the elements where the word transaction occurs.
Shallow Set Symmetric Difference on Java Jar Archive - Elements with TransactionThe following example shows shallow set operations performed on the sample JMXJAR workspace.
In this example we will get the shallow symmetric difference on the elements where the word transaction occurs.
